Design

• Double wall pass-through dishwasher
• Stand-alone unit
• with lye pomp
• with detergant
• with feed in- / and leaving table
• Door opening with safety system
• Digital display
• Electronic control
• Electronic temperature control
• Rotating wash arm
• 4 Wash arms for effective cleaning
• 4 Rinsing arms
• Suitable for dishes and pots
• In-feed table, right mounting side
• Run-out table
• Easy to clean

Quality

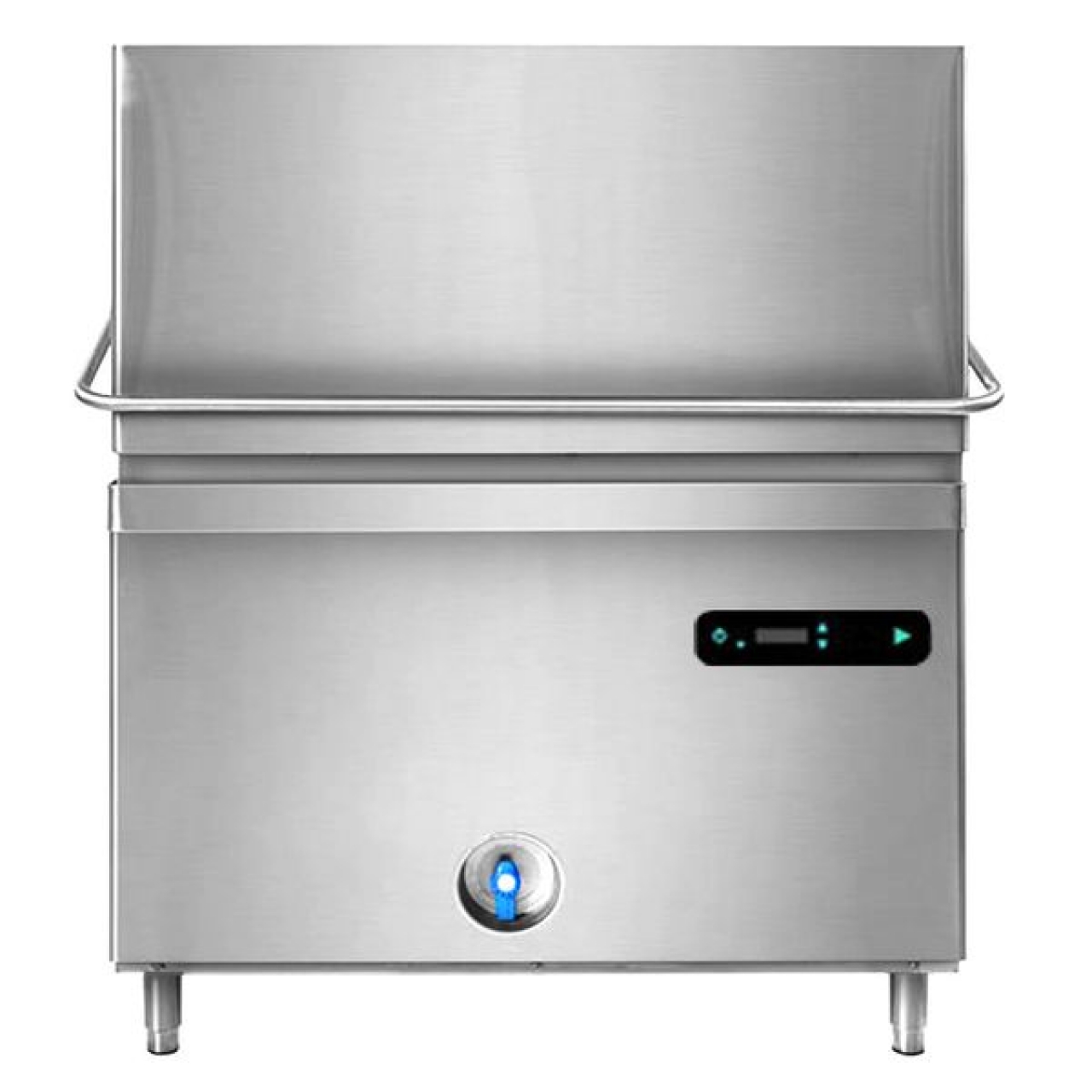

• Pass-through dishwasher DS430ED
• Corpus made of high quality stainless steel AISI 304
• Very robust device
•
• Feeder table ZNS127BL
• Made of high quality stainless steel
• with upstand
• Large sink made of stainless steel
•
• Run-out table ANS105
• Made of high quality stainless steel
• High stability
•
• Dish rinser GM1P
• Finished with chromed metal
• Sprinkler head can be swiveled at 360°

Rinsing process

• easy handling: 4 programms
•
• rinsing programm I:
• washing cycle: 60 seconds
• Baskets/h: 60 pieces
•
• rinsing programm II:
• washing cycle: 120 seconds
• Baskets/h: 30 pieces
•
• rinsing programm III:
• washing cycle: 180 seconds
• Baskets/h: 20 pieces
•
• rinsing programm IV:
• washing cycle: 480 seconds
• Baskets/h: 8 pieces

Technology

• Cleaner tank with double filter system
• electric rinse aid dosage pump (white  hose)
• rotating, non-congestive wash and rinse arms
• Lye pump pumps dirty water over a height difference into the sewage connection

Product benefits

• high washing performance
• Standby function
• Washing cycle starts automatically after closing the cover
• Extremely quiet
• Excellent cleaning results

Connection:

• Output: 22,2 kW
• Electric connection: 400 Volt / 3 N~ / 50 Hz

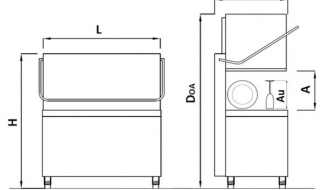

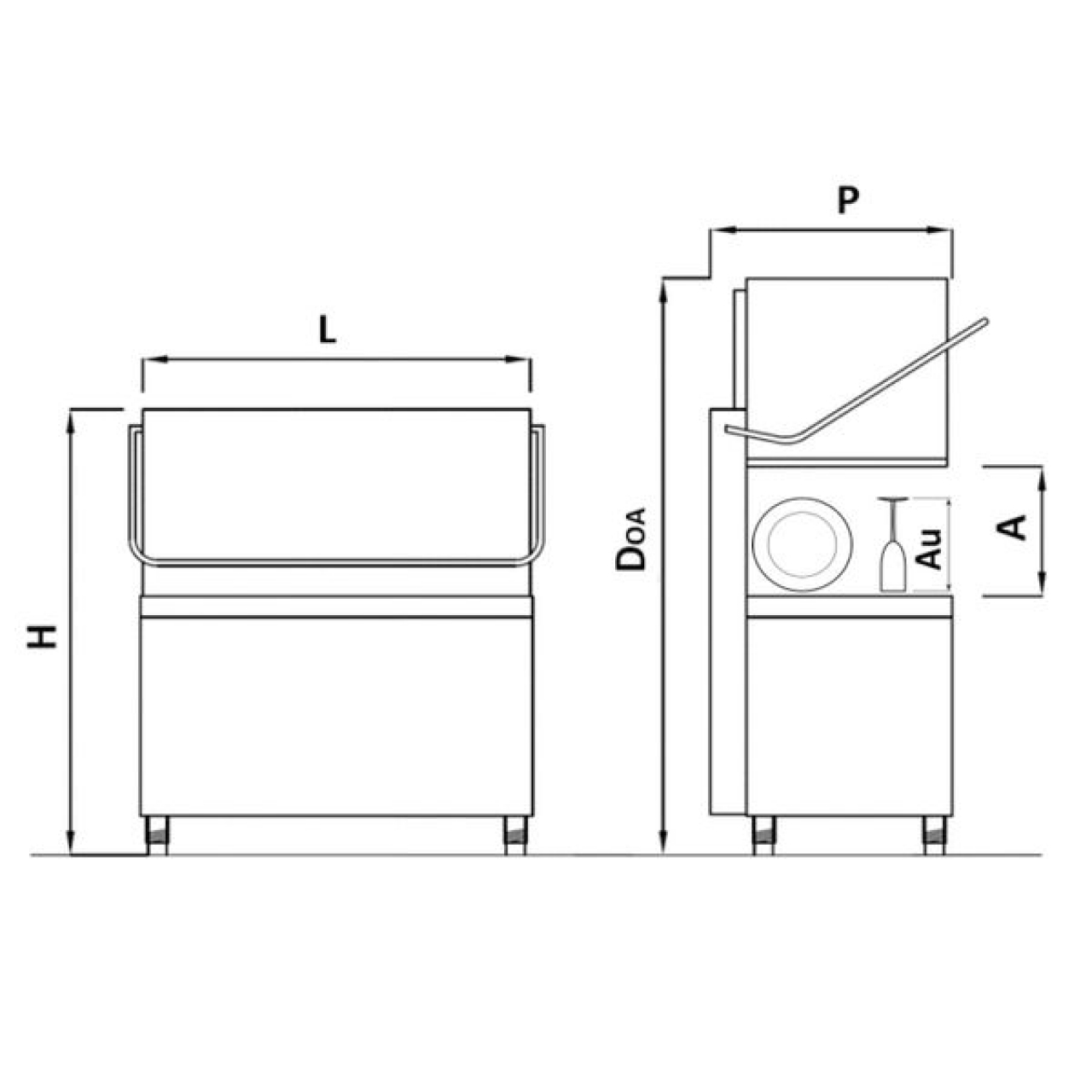

Dimensions

• External dimensions W x D x H: 3381 x 796 x 1500/1950 mm

scope of supply

• Inlet table, mounting side right ZNS127BL
• Run-out table ANS105
• Single-hole dish rinser GM1P
• 5 glass racks
• Universal basket
• Dish basket
• 1 cutlery basket

Guidelines

• Produced according hygiene and safety requirements
• EU, CE and the product has been produced in accordance

Note

• Information on supply voltage in the user manual
• Please note that a cold water connection is required for this unit.
• Only suitable for chlorine free cleaners.
• For optimum rinsing, we recommend that you regularly descale the appliance and its components!
• If you have installed a de-scaler upstream of the cartridge, please note that the cartridge must be regenerated after approx. 1.500 - 2.000 litres of water flow. The actual maximum flow rate is determined by the water hardness.
• Detailed instructions can be found under the tab 'Download' and 'Video'.
