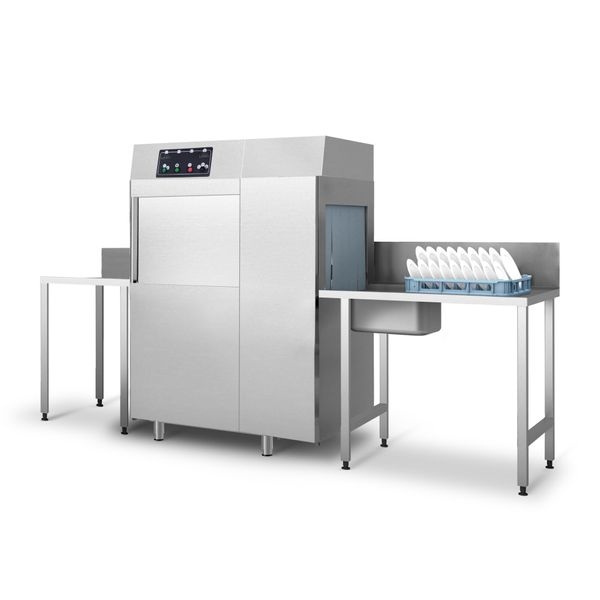

Design

• Stand-alone unit
• Door opening with safety system
• Silent operation
• with cleaner pump
• insulated rinsing tank
• Rounded inner corners
• Easy to clean

Quality

• Corpus made of high quality stainless steel AISI 304
• Very robust device

Rinsing process

• Baskets/h: 83 pieces
• Plates/h: 1.494 pieces

Technology

• wash tank with filter sytem (easy and quick cleaning)

Product benefits

• Particularly water-saving
• Enables highly efficient working
• Excellent cleaning results

Connection:

• Output: 11,25 kW
• Electric connection: 400 Volt / 3 L / 50 Hz

Dimensions

• External dimensions W x D x H: 1150 x 790 x 1485 mm

Guidelines

• Produced according hygiene and safety requirements
• EU, CE and the product has been produced in accordance

Note

• Information on supply voltage in the user manual
• hot water connection recommended
• Please note that this appliance is only suitable for chlorine-free cleaner.
• For optimum rinsing, we recommend that you regularly descale the appliance and its components!
• If you have installed a de-scaler upstream of the cartridge, please note that the cartridge must be regenerated after approx. litres of water flow. The actual maximum flow rate is determined by the water hardness.
• Detailed instructions can be found under the tab 'Download' and 'Video'.
•

OPTIONAL ACCESSORIES:

• (Please order as additional equipment!)
• In-feed table, right mounting side
• Run-out table
