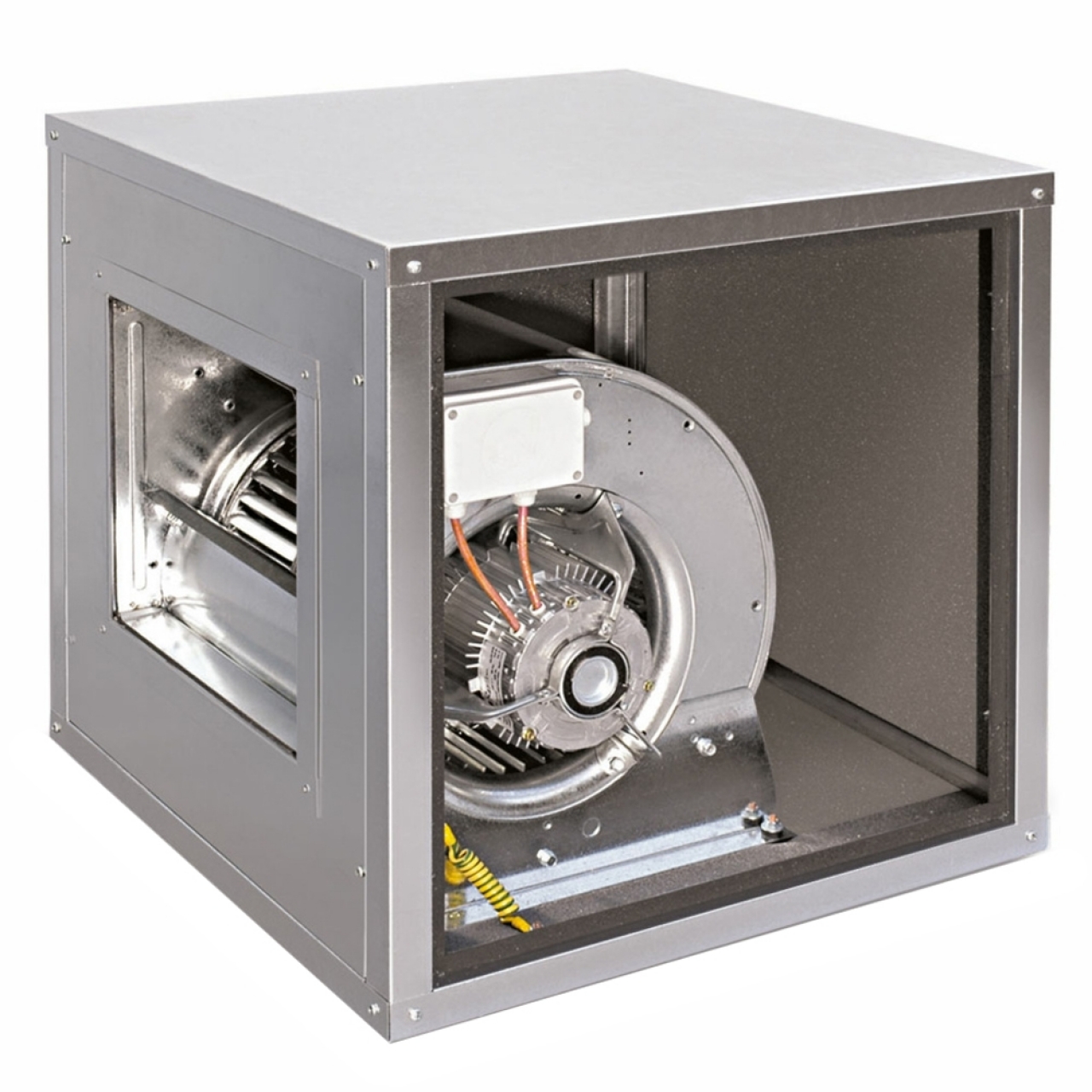

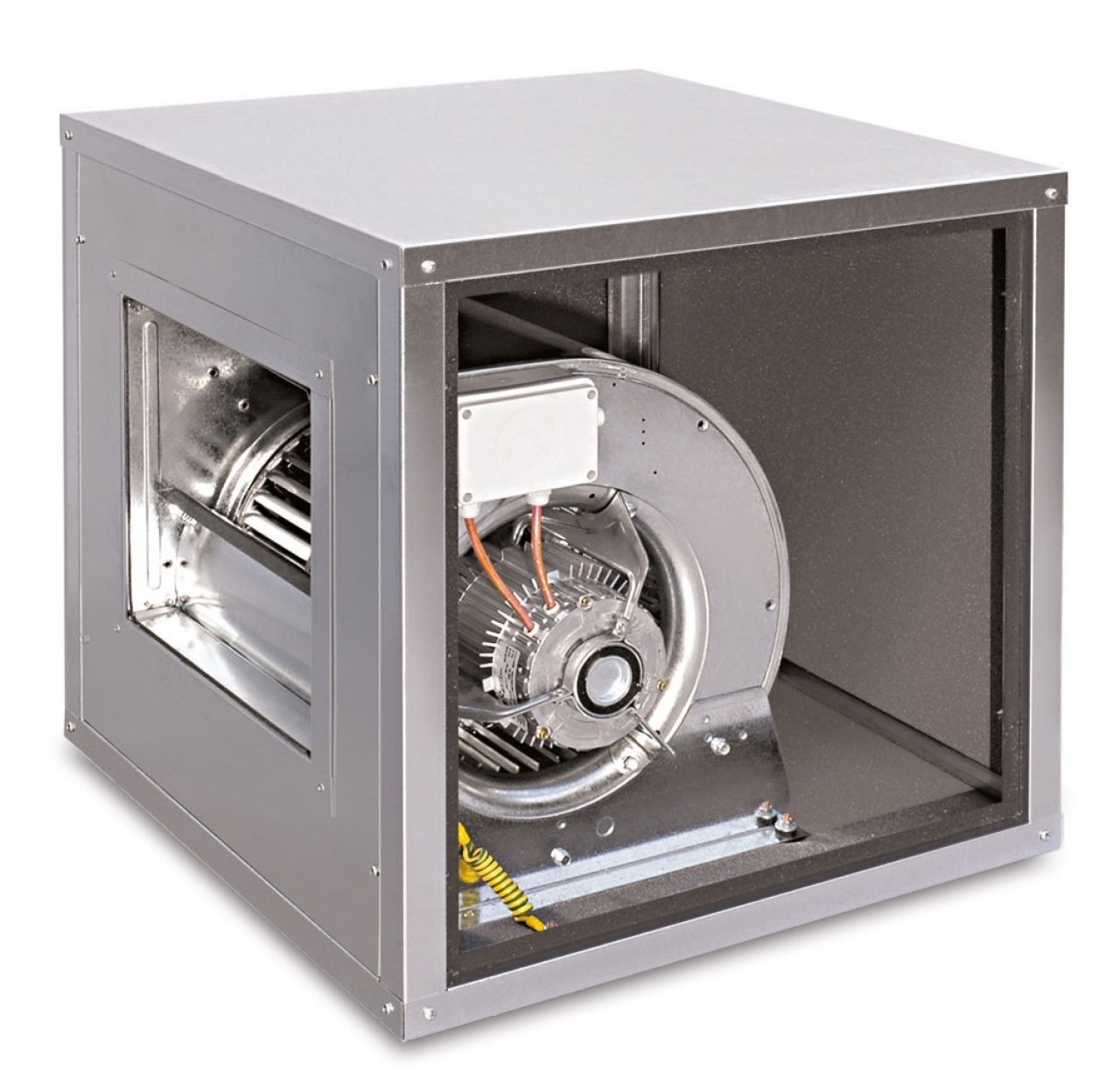

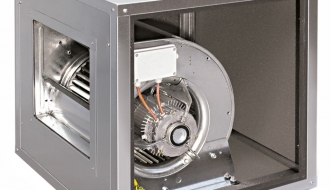

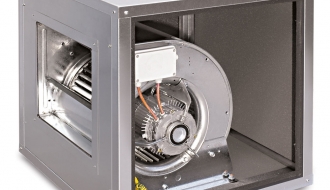

Airbox 8000 m³ per hour
0.00€ + km
Tootekood: SKUAC8000
Kauba kaal: 53kg

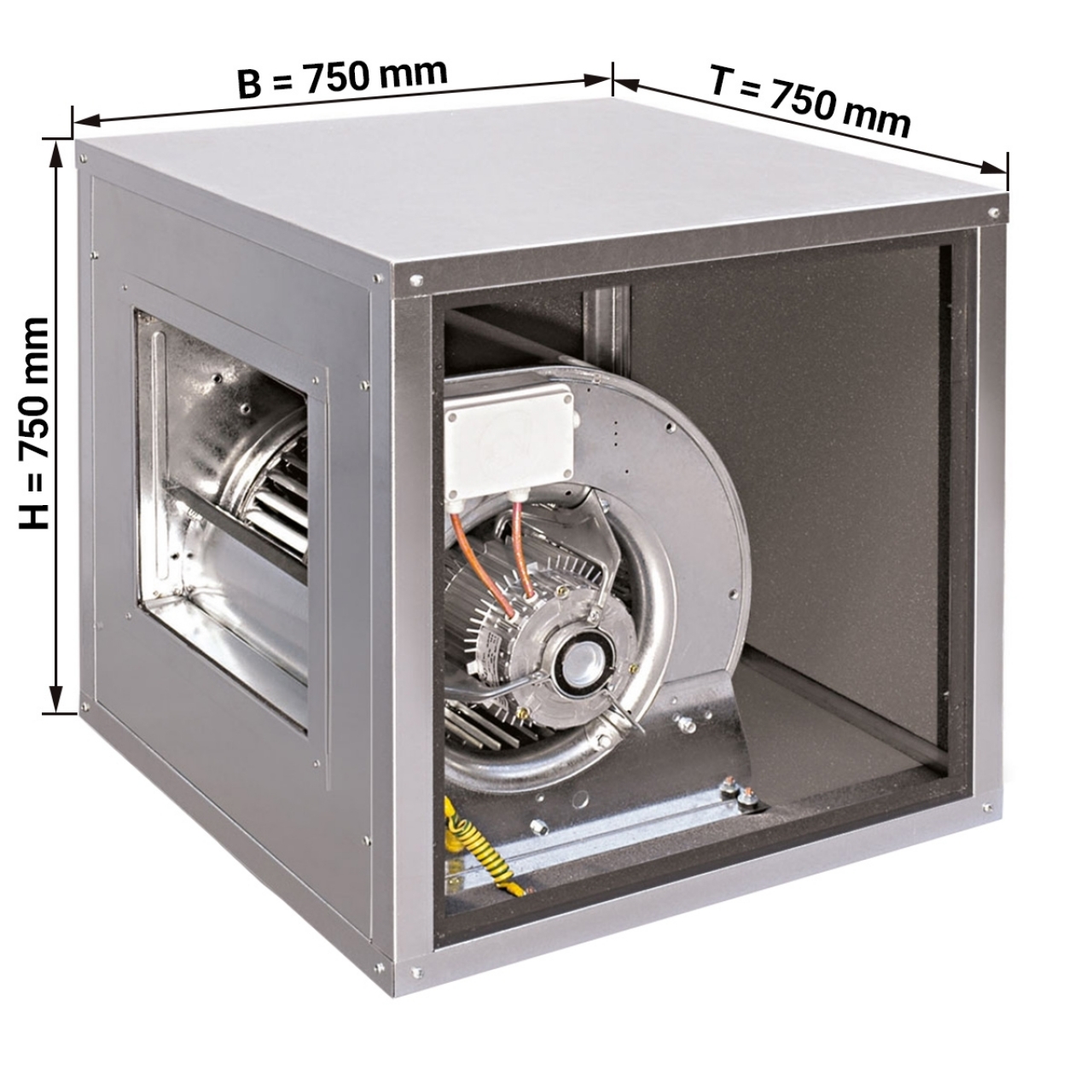

Mõõdud: B 750 x T 750 x H 750 mm
Kaup laos
-
+
Hind kokku:
0.00€ + km
0.00€ + km
Lisa korviküsi hinda
Design
- Motor power 8000 m³

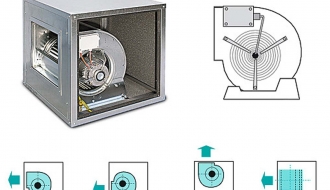

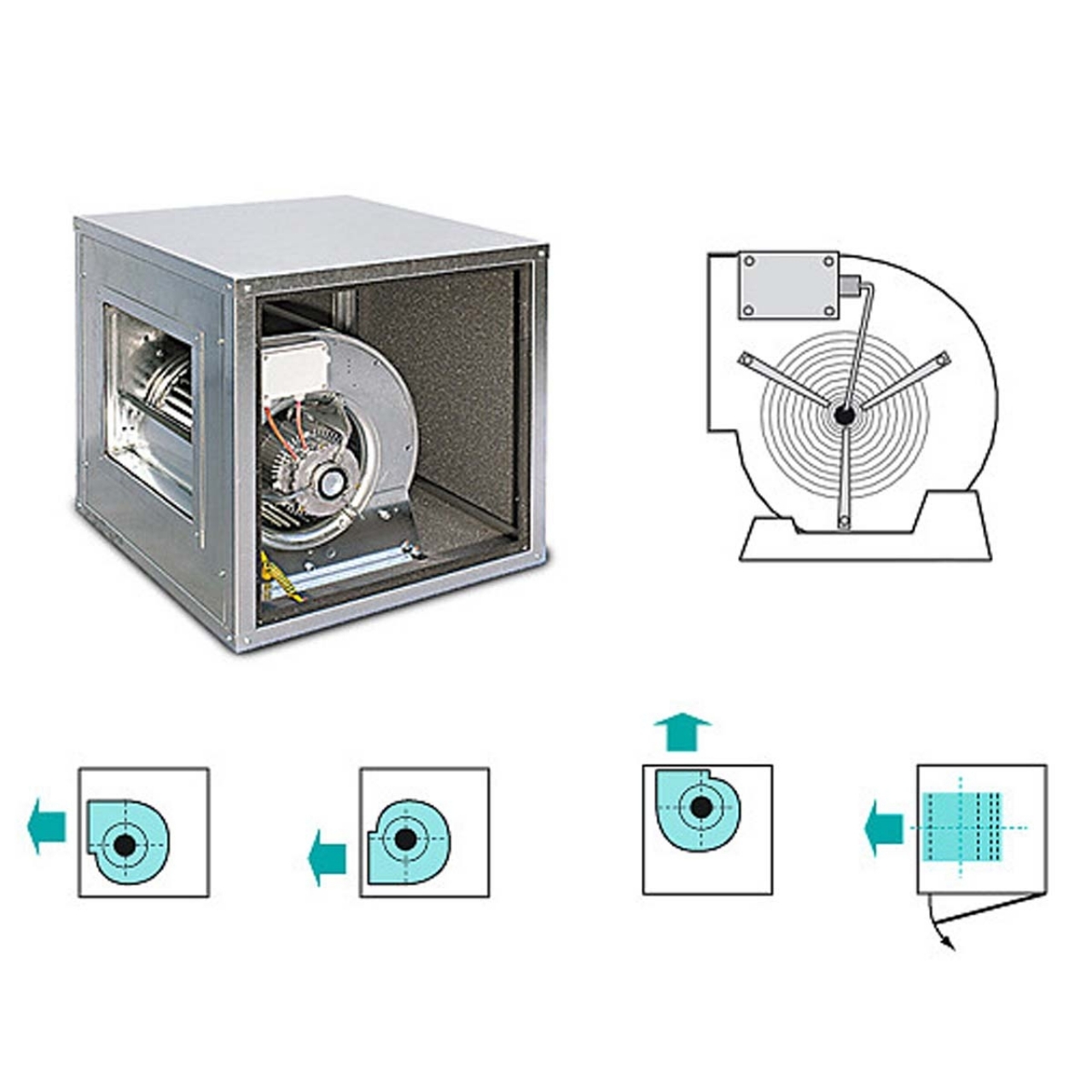

- Square air outlet
- Optimal performance with low electricity consumption
- Environmentally-friendly
- Easy to clean
Quality
- Aluminium profile frame
- Low-noise and weather-proof covering
- Reduction of heat and noise
Technology

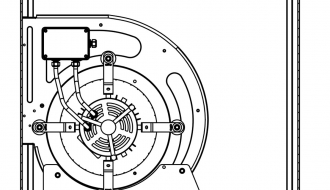

- Motor connected directly with the impeller
- Very resistent and durable
Connection:
- Output: 1,1 kW
- Electric connection: 400 Volt / 3 L / 50 Hz

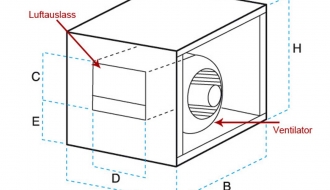

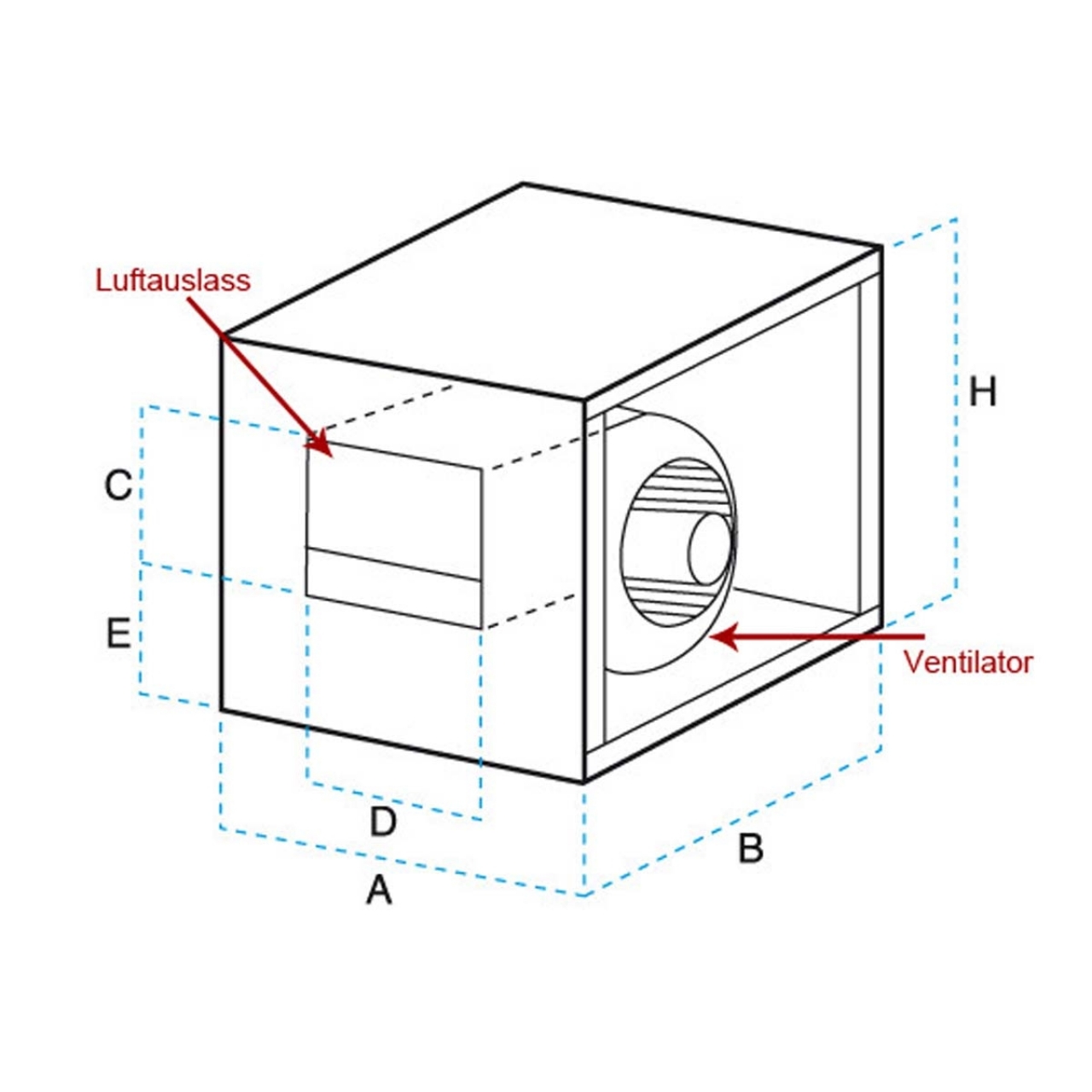

Dimensions
- External dimensions W x D x H: 750 x 750 x 750 mm
Guidelines
- ErP Guideline 2018
- Produced according hygiene and safety requirements
- EU, CE and the product has been produced in accordance
Note

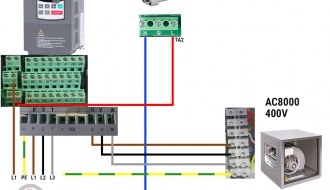

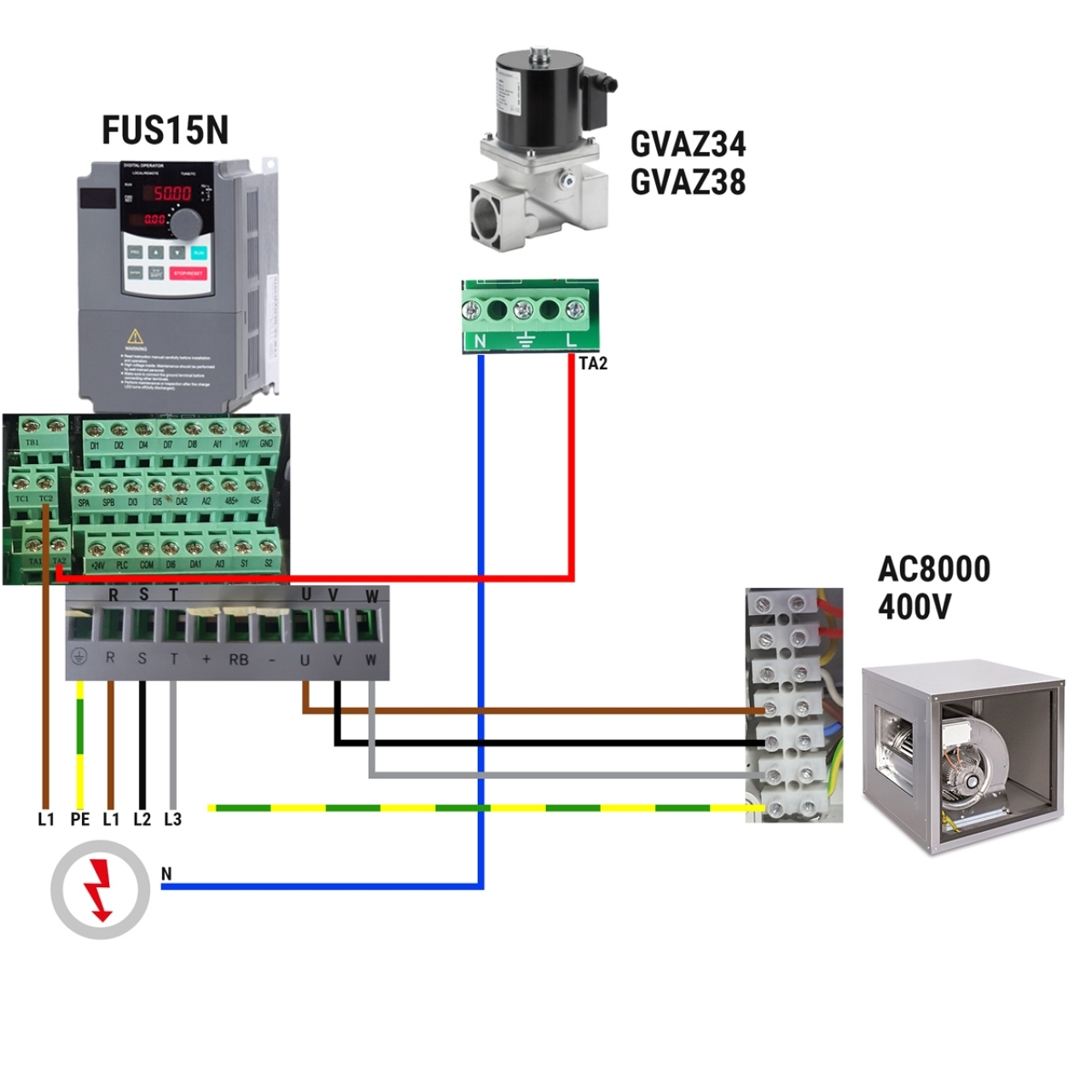

- IMPORTANT: to avoid motor failure, it is important to connect the existing thermal contact to the speed controller. A fault due to an unconnected thermal contact is not covered by the warranty.
Dimensions
| Width | 750 mm |
|---|---|
| Depth | 750 mm |
| Height | 750 mm |
Details
| Speed regulation | Frequency converter |
|---|---|
| Air turnover per hour | 8000 m³/h |
Connected loads
| Output | 1,1 kW |
|---|---|
| Voltage | 400 volt |
| Frequency | 50 Hz |
| Current | 5,7 amp |
| Phases | 3 |
Delivery
| Shipping type | forwarding agency |
|---|---|
| Delivery condition | assembled |
| Weight | 53 kg |
Lisainfo
