Note

• Aroma Smoker for combines steam ovens
• Produces a natural and spicy arome as well as an unmistakable colour
• Quick and easy mounting
• The plasma extractor hoods may only be used for electrical devices (VDI2052 regulation)
• Different fuels can be used

Design

• Plasma reactor with fibreglass and electric filter
• Number of filters: 3 units
• With motor
• Height-adjustable up to 1035 mm
• Regulator with 5 levels
• With a turbo setting
• Recirculation air process
• Displacement volume: 800 m³/h

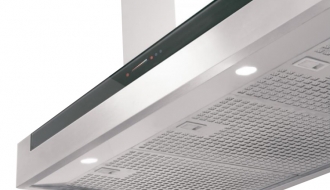

• LED lighting with dimmer function
• Incl. metal grease filter (washable)
• Grease separation degree: 96,0 %
• Operating volume: approx.65 dB
• Delayed automatic shut-off: 15minutes
• Energy efficiency class A+
• Compact design
• Quick assembly
• Easy to clean

Functions

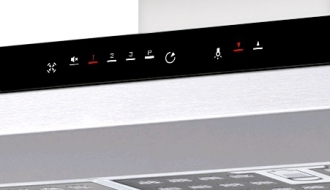

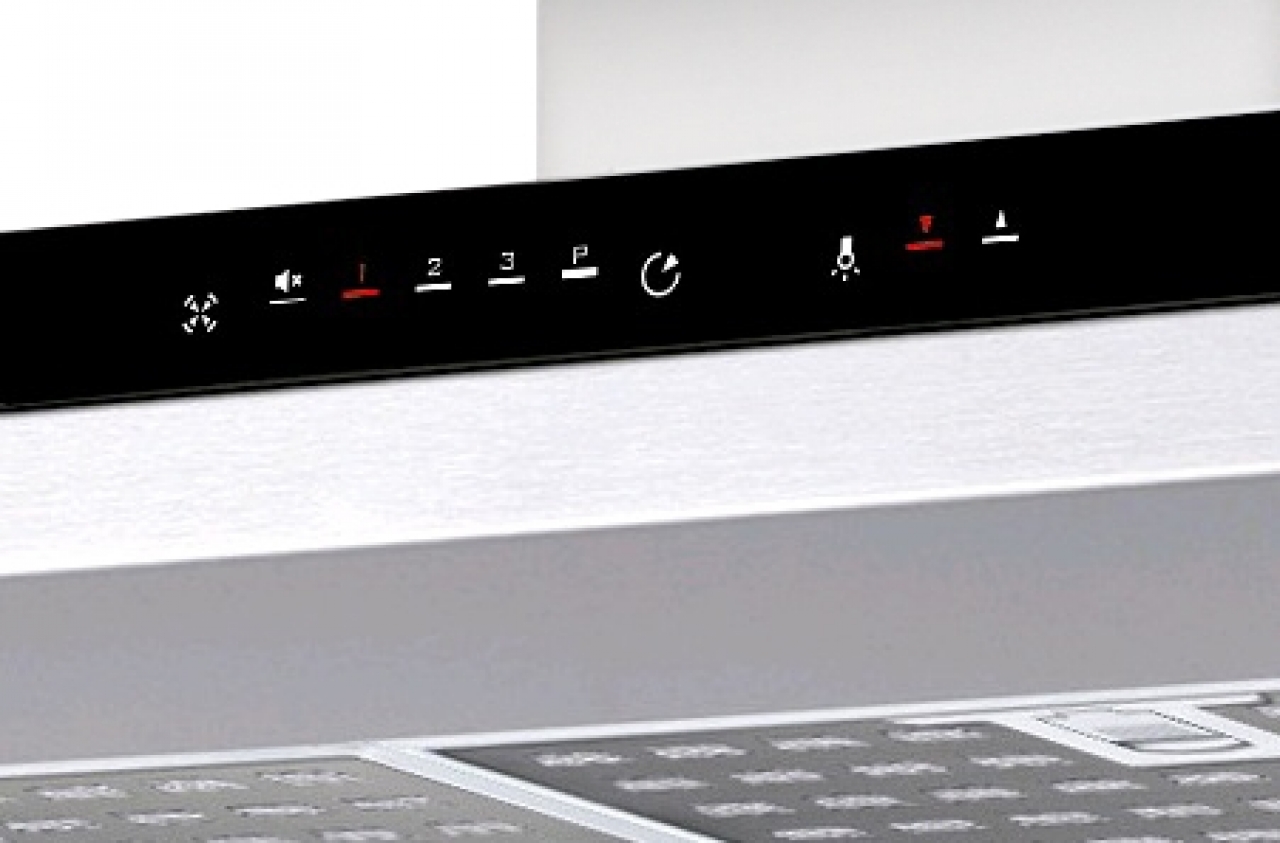

• Regulation via the soft-touch control panel
• Self-cleaning electric night-filter
• Filter saturation indicator
• Air purification

Quality

• Made of high quality stainless steel

Connection:

• Output: 195 watt
• Voltage: 220 - 240 volt
• Frequency: 50 Hz
• Required: 2 plugs with 230 volts

Dimensions

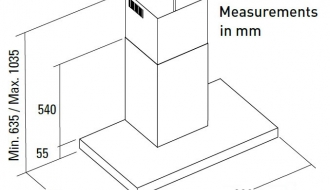

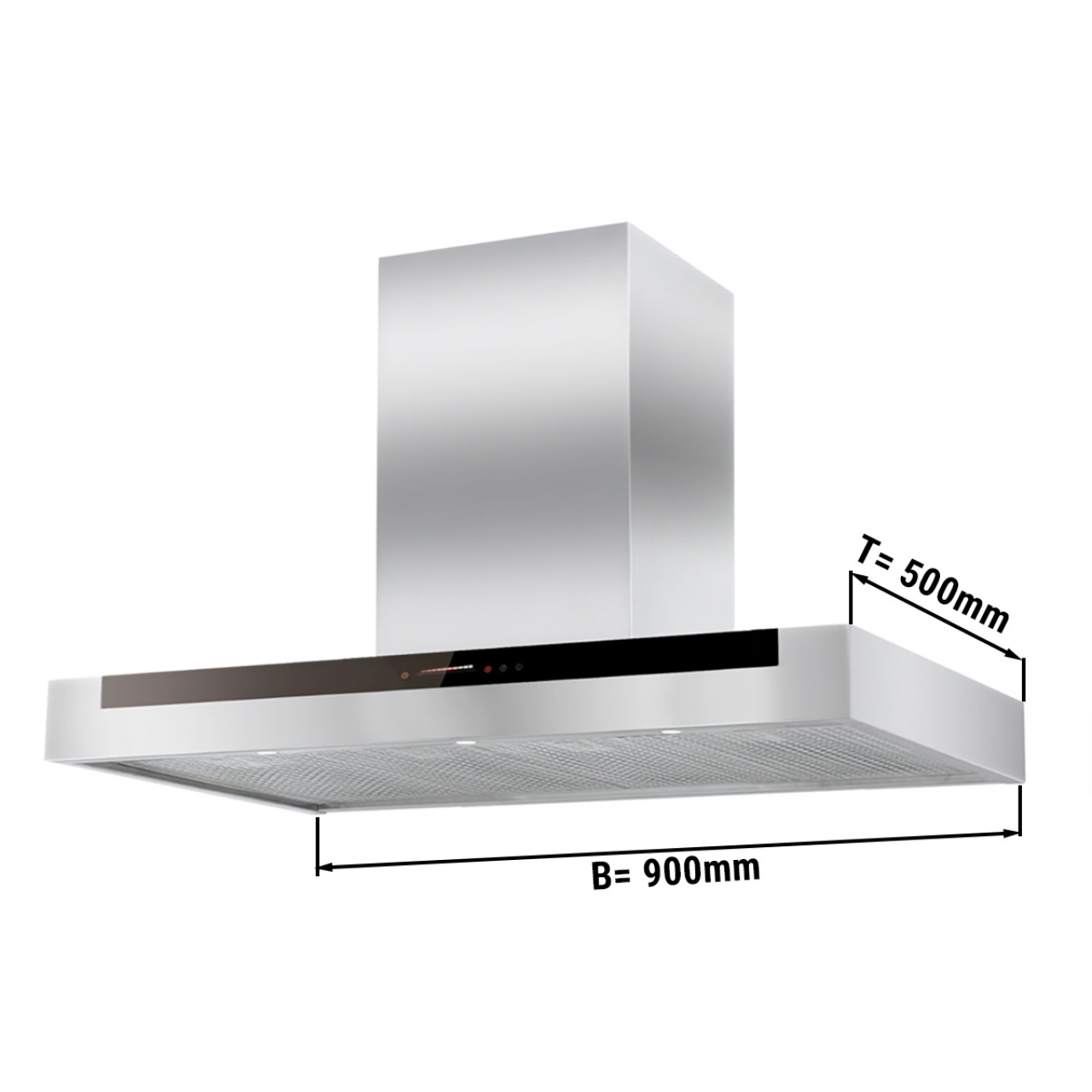

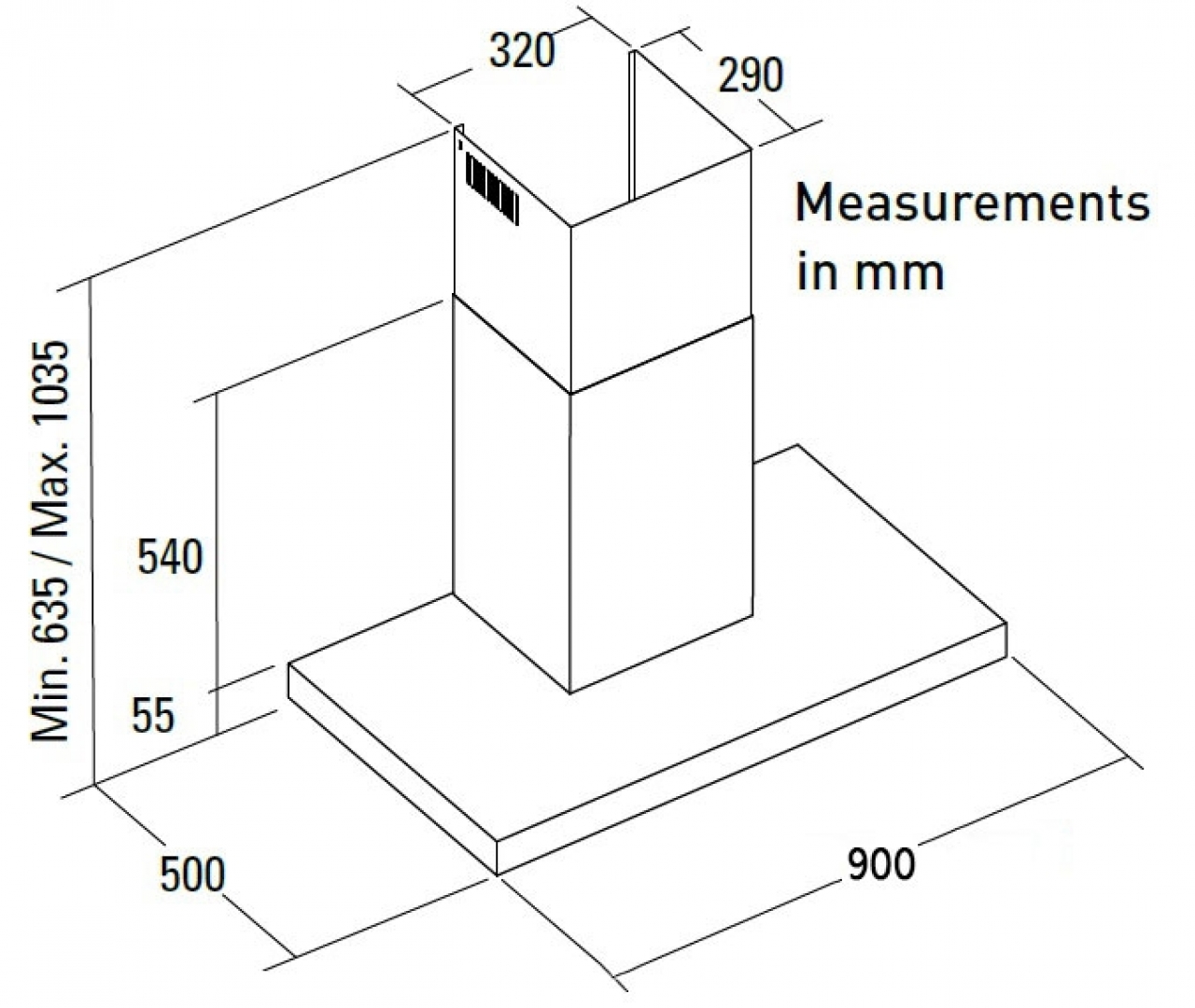

• External dimensions W x D x H: 900 x 500 x 635 - 1035 mm

scope of supply

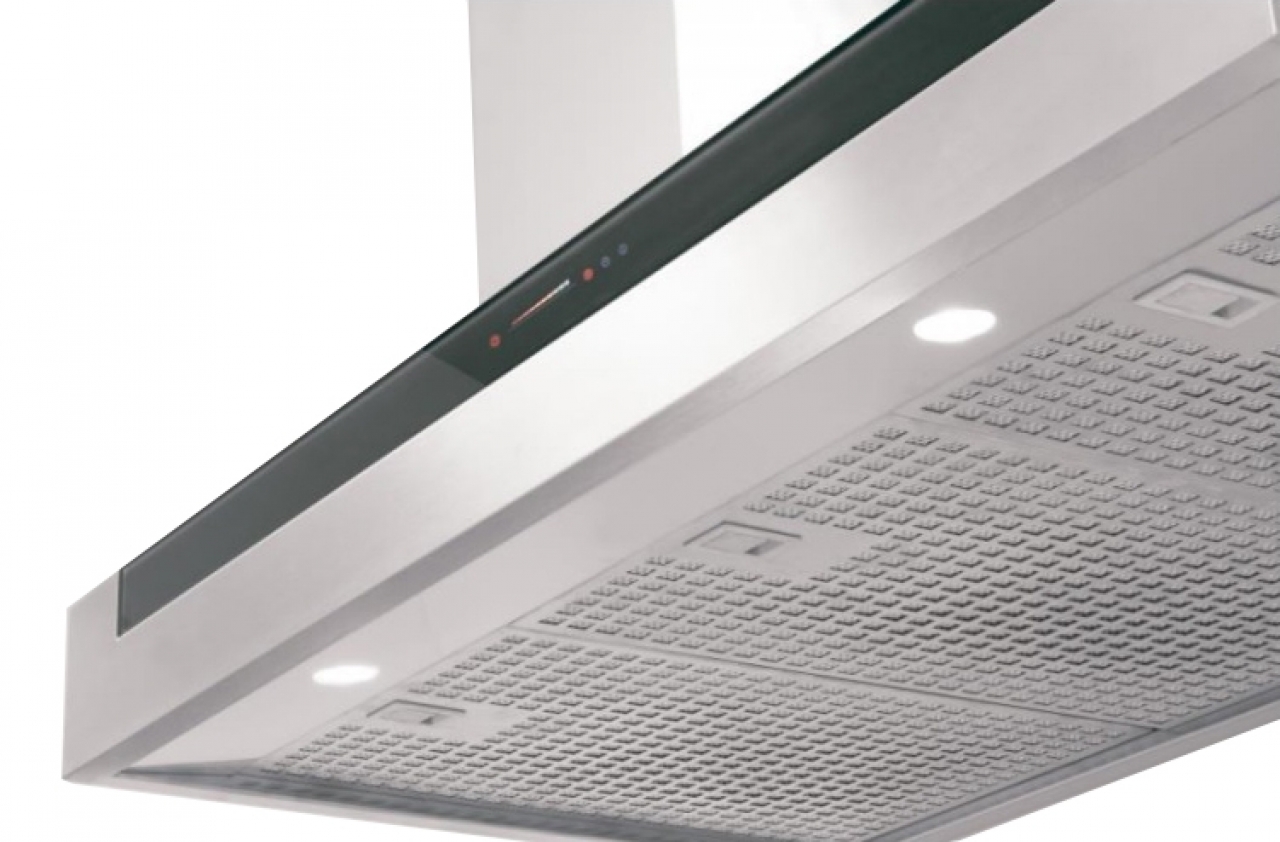

• Plasma extractor hood
• Certificate for your department
• Incl. mounting material

Guidelines

• Certified by the technical inspection Agency (TÜV) Rheinland (for your authorities)
• Filter in accordance to ABS standard
• Produced according hygiene and safety requirements
