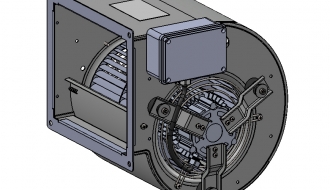

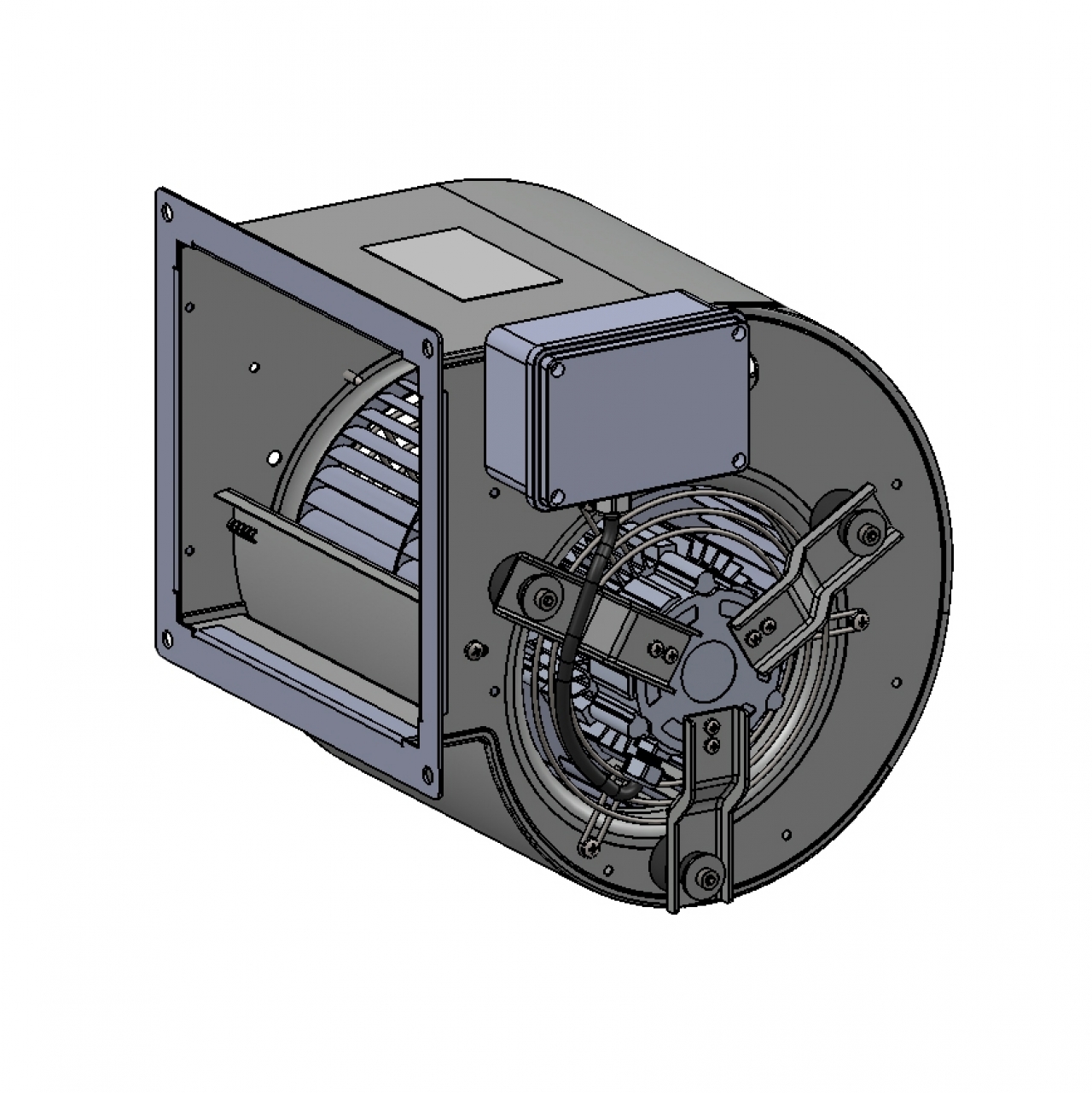

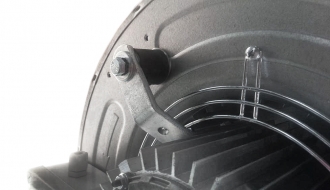

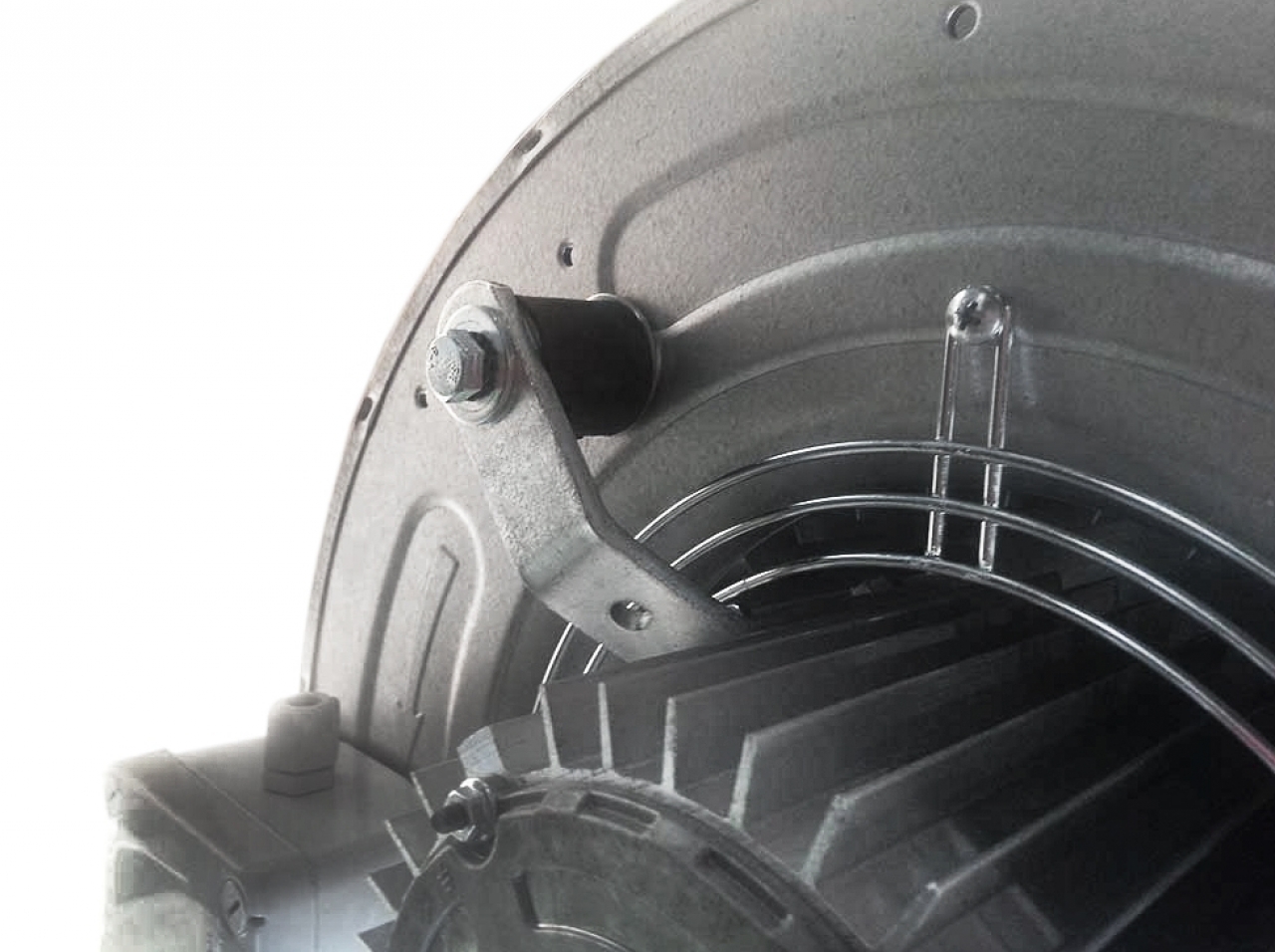

Radial fan 2200 m³ per hour - for wall hoods
0.00€ + km
Tootekood: SKURS2520H
Kauba kaal: 15kg
Mõõdud: B 376 x T 320 x H 348 mm
Kaup laos
-
+
Hind kokku:
0.00€ + km
0.00€ + km
Lisa korviküsi hinda
Design
- Built-in motor for wall hoods
- TOP performance 2200 m³
- Temperature: from -20 °C to +40 °C
- Low energy consumption
- Self-aligning lubricant nozzle
- Without speed regulator and feet
- Practical, maintenance-free machine
- Easy to clean
- Easy mounting
Quality
- Radial fan made of galvanised steel
- Fan wheel made of galvanised steel

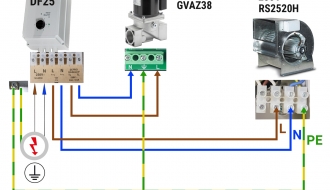

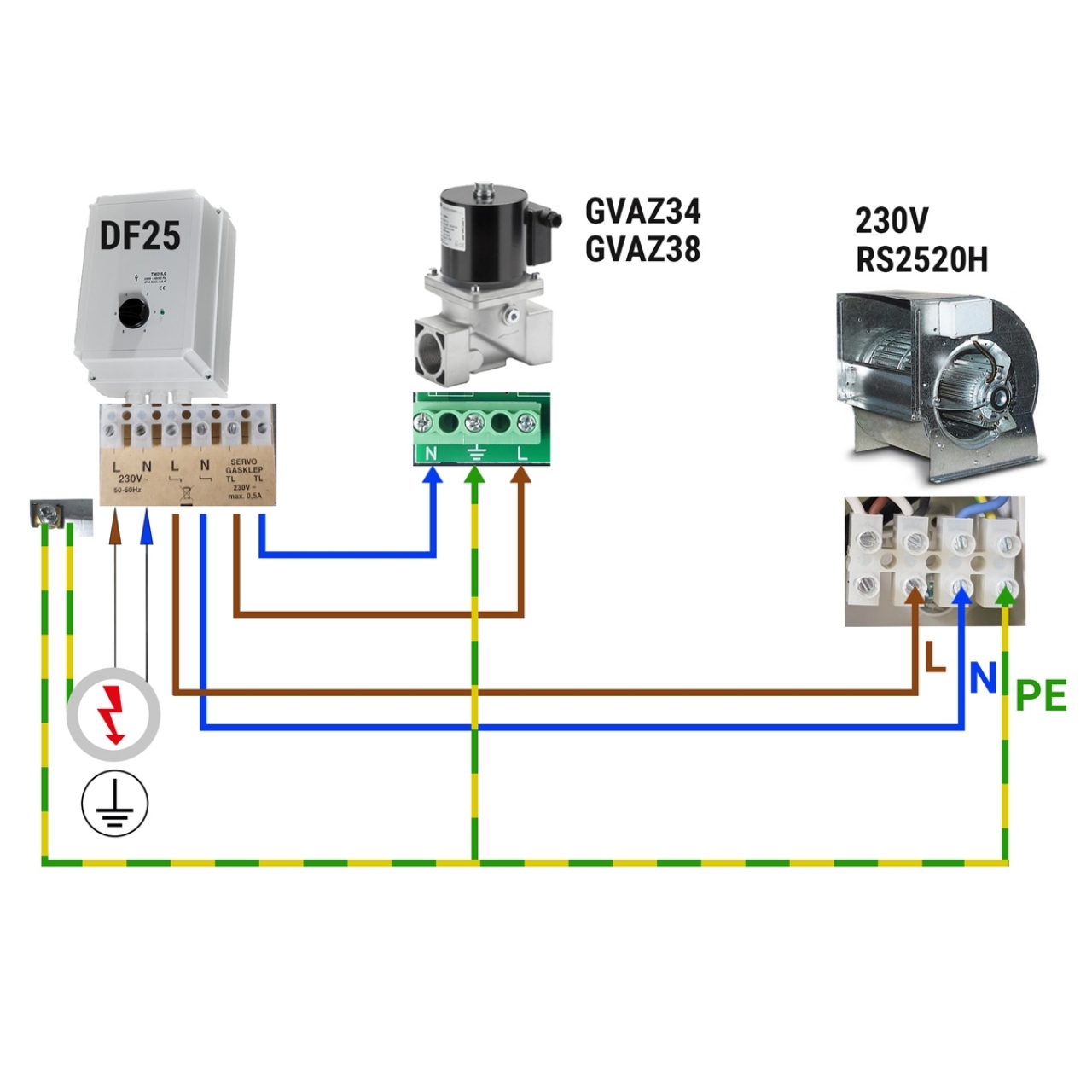

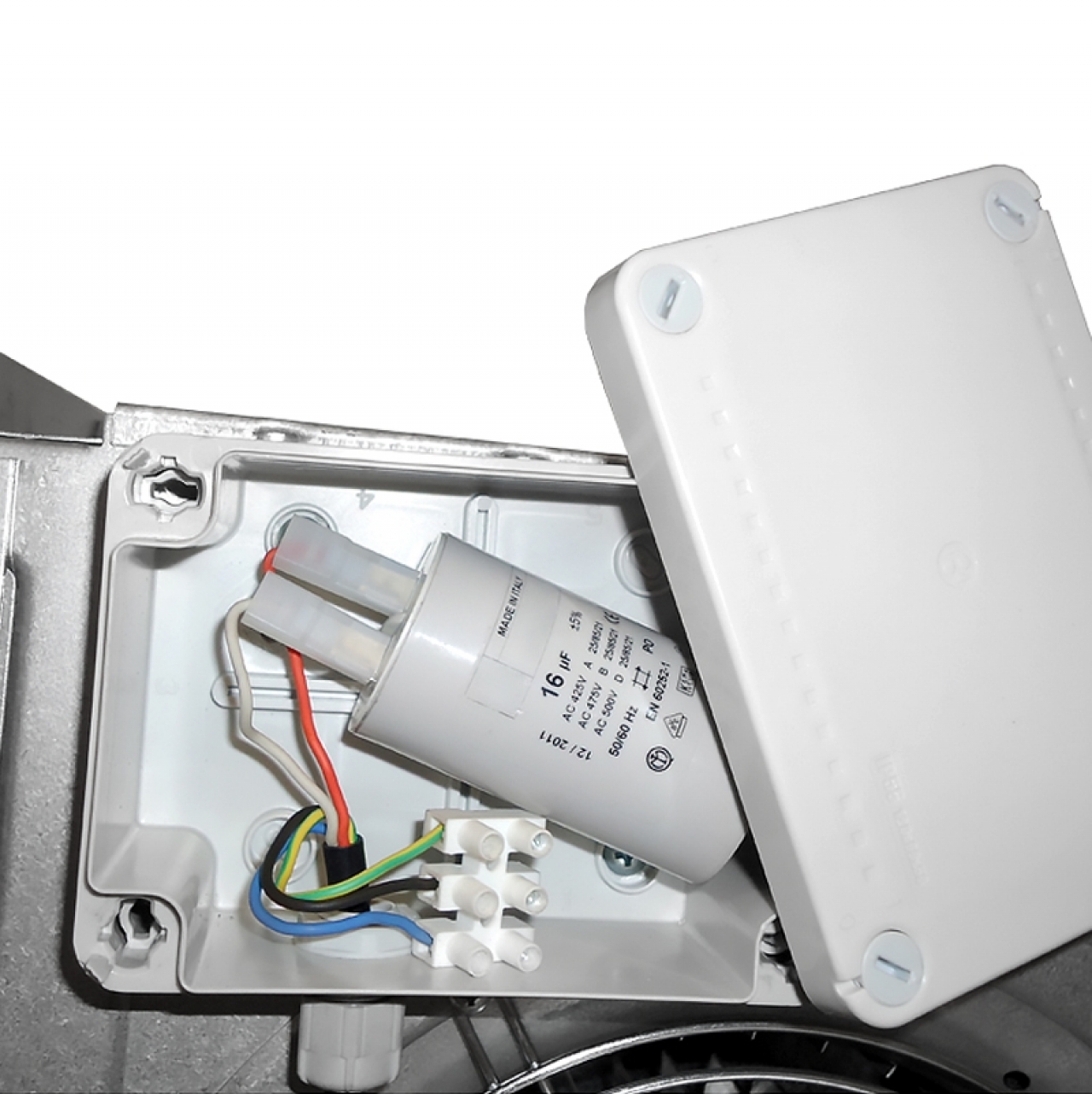

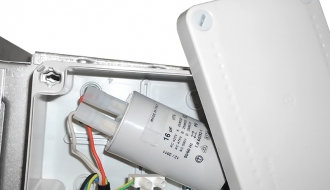

Connection:
- Output: 420 watt
- Electric connection: 230 Volt / 1 L / 50 Hz

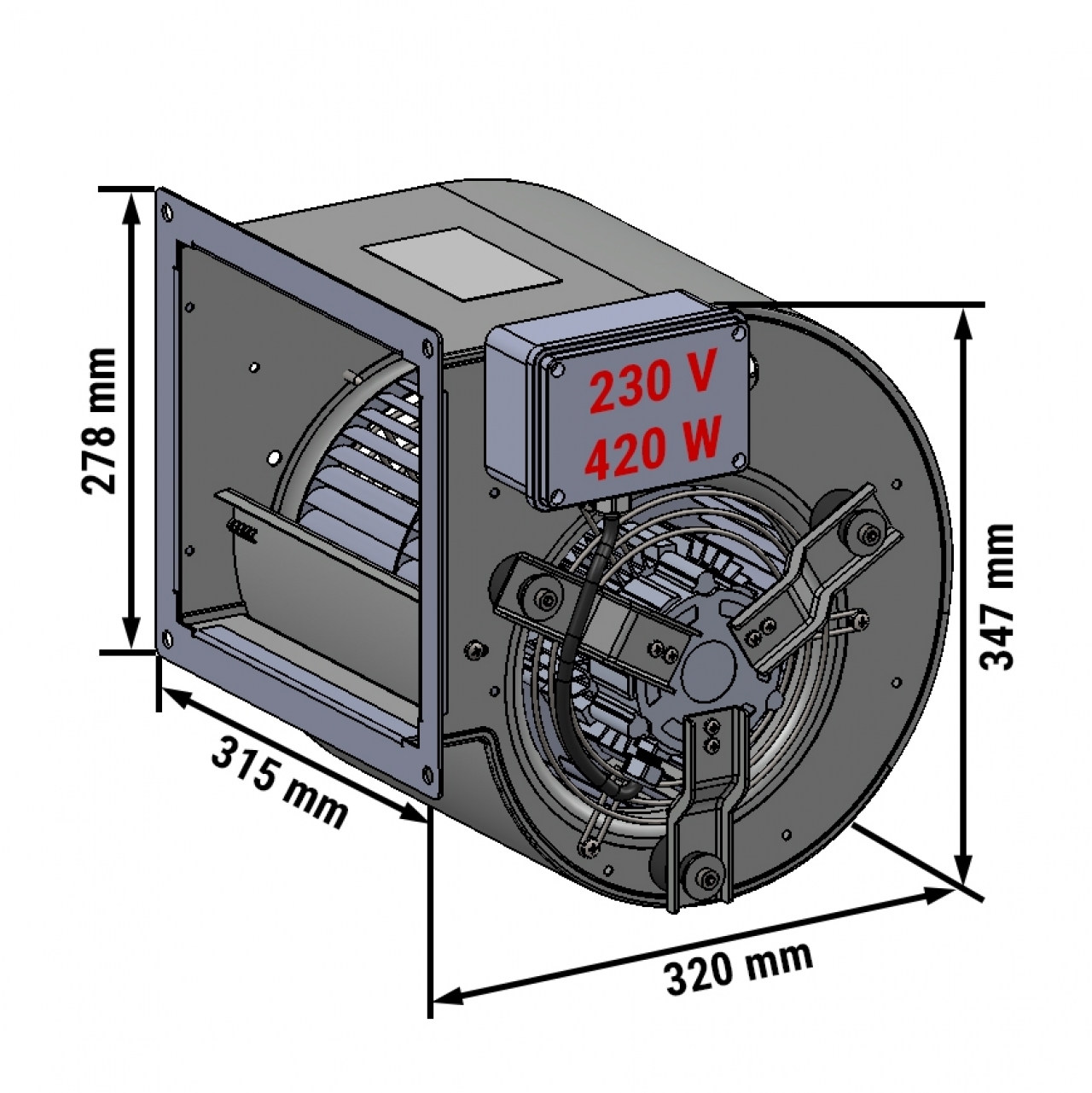

Dimensions
- External dimensions W x D x H: 376 x 320 x 348 mm
Guidelines
- ErP Guideline 2015
- Produced according hygiene and safety requirements
- EU, CE and the product has been produced in accordance
- Material corresponds to the European Food Product Standards
Dimensions
| Width | 376 mm |
|---|---|
| Depth | 320 mm |
| Height | 348 mm |
Sizes for the drawing
| A | 325 mm |
|---|---|
| B | 355 mm |
| C | 305 mm |
| D | 275 mm |
| E | 40 mm |
| F | 300 mm |
| G | 260 mm |
| H | 240 mm |
Details
| Speed regulation | Governor |
|---|---|
| Air outlet dimensions | 261 mm |
| Air turnover per hour | 2200 m³/h |
| Temperature | -20 °C to +40 °C |
Connected loads
| Output | 420 watt |
|---|---|
| Voltage | 230 volt |
| Frequency | 50 Hz |
| Current | 3,8 amp |
| Phases | 1 |
Delivery
| Shipping type | parcel |
|---|---|
| Delivery condition | assembled |
| Weight | 15 kg |
Lisainfo
DARE 9/9R XPL 2031004 1F 4P 1V + GR +FLSeotud tooted
